L78L05ACUTR IC REG LINEAR 5V 100MA SOT89-3 STMicroelectronics

Name: L78L05ACUTR IC REG LINEAR 5V 100MA SOT893 STMicroelectronics
Brand: STMicroelectronics
Price: 1 USD

Brand Name : STMicroelectronics

Model Number : L78L05ACUTR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 30V

Voltage - Output (Min/Fixed) : 5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : -

Current - Output : 100mA

Current - Quiescent (Iq) : 5.5 mA

Current - Supply (Max) : 6 mA

PSRR : 49dB (120Hz)

Control Features : -

Protection Features : Over Current, Over Temperature, Short Circuit

Operating Temperature : 0°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : TO-243AA

Supplier Device Package : SOT-89-3

Contact Now

Product Details

L78L05ACUTR Description

This three-terminal positive regulator employs internal current limiting and thermal shutdown, making it essentially indestructible. If adequate heat-sink is provided, it can deliver up to 100 mA output current. It is intended as fixed voltage regulator in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, it can be used with power pass elements to make high-current voltage regulators.

L78L05ACUTR Features

Solder Tabs
Vacuum Caps
Embossed Tape Packaging
Output current up to 100 mA
Thermal overload protection
Short-circuit protection

L78L05ACUTR Applications

Power Management

Specifications

Attribute	Attribute Value
Manufacturer	STMicroelectronics
Product Category	Linear Voltage Regulators
Series	L78L05AC
Packaging	Alternate Packaging
Unit-Weight	0.004603 oz
Mounting-Style	SMD/SMT
Package-Case	TO-243AA
Operating-Temperature	0°C ~ 125°C
Mounting-Type	Surface Mount
Output-Type	Fixed
Supplier-Device-Package	SOT-89-3
Voltage-Input	Up to 30V
Number-of-Outputs	1 Output
Current-Output	100mA
Voltage-Output	5V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	1.7V @ 40mA
Number-of-Regulators	1 Regulator
Current-Limit-Min	-
Maximum Operating Temperature	+ 150 C
Operating temperature range	0 C
Polarity	Positive
Output-Voltage	5 V
Input-Voltage-MAX	30 V
Output-Current	100 mA
Input-Voltage-MIN	7 V
Load-Regulation	60 mV
Package-Case	SOT-89
Line-Regulation	150 mV
Power Supply Ripple Rejection (PSRR)	49 dB

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
MC78L05ACHX Power Circuits	3-Terminal 0.1A Positive Voltage Regulator, 4000-REEL	ON Semiconductor	L78L05ACUTR vs MC78L05ACHX
L78L05ACD13TR Power Circuits	0.1A positive voltage regulators	STMicroelectronics	L78L05ACUTR vs L78L05ACD13TR
LM78L05ACM/NOPB Power Circuits	100-mA Fixed Output Linear Regulator 8-SOIC 0 to 125	Texas Instruments	L78L05ACUTR vs LM78L05ACM/NOPB
LM78L05ACZ Power Circuits	3-Terminal 0.1A Positive Voltage Regulator, 10000-BLKBG	ON Semiconductor	L78L05ACUTR vs LM78L05ACZ
L78L05ACZ Power Circuits	0.1A positive voltage regulators	STMicroelectronics	L78L05ACUTR vs L78L05ACZ
L78L05ABUTR Power Circuits	0.1A positive voltage regulators	STMicroelectronics	L78L05ACUTR vs L78L05ABUTR
L78L05ABD13TR Power Circuits	0.1A positive voltage regulators	STMicroelectronics	L78L05ACUTR vs L78L05ABD13TR
MC78L05ACDR2G Power Circuits	Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = 0°C to +125°C, SOIC-8 Narrow Body, 2500-REEL	ON Semiconductor	L78L05ACUTR vs MC78L05ACDR2G
LM78L05ACMX/NOPB Power Circuits	100-mA Fixed Output Linear Regulator 8-SOIC 0 to 125	Texas Instruments	L78L05ACUTR vs LM78L05ACMX/NOPB
MC78L05ABDR2G Power Circuits	Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = -40°C to +125°C, SOIC-8 Narrow Body, 2500-REEL	ON Semiconductor	L78L05ACUTR vs MC78L05ABDR2G

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 5V 100mA SOT-89-3

Standard Regulator Pos 5V 0.1A 4-Pin(3+Tab) SOT-89 T/R

Linear Voltage Regulators 5.0V 0.1A Positive

China L78L05ACUTR IC REG LINEAR 5V 100MA SOT89-3 STMicroelectronics factory

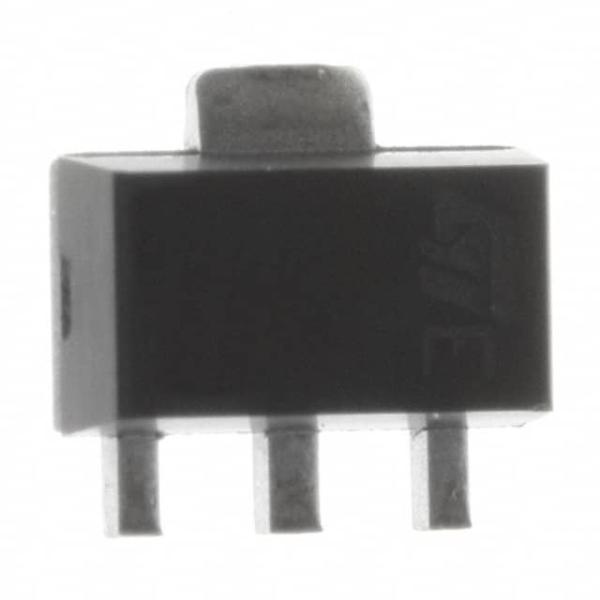

L78L05ACUTR IC REG LINEAR 5V 100MA SOT89-3 STMicroelectronics Images
