ISL9021AIRUFZ-T IC REG LINEAR 2.5V 250MA 6UTDFN Renesas Electronics America Inc

Brand Name : Renesas Electronics America Inc

Model Number : ISL9021AIRUFZ-T

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 2.5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.25V @ 250mA

Current - Output : 250mA

Current - Quiescent (Iq) : 50 µA

Current - Supply (Max) : -

PSRR : -

Control Features : Enable

Protection Features : Over Current, Over Temperature, Reverse Polarity, Short Circuit, Soft Start

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 6-UFDFN

Supplier Device Package : 6-UTDFN (1.6x1.6)

Contact Now

Product Details

The ISL9021A is a single LDO, which provides high performance, low input voltage and high PSRR. It delivers guaranteed continuous 250mA load current and is stable with 1µF to 4.7µF of output capacitance (±30%) with an ESR range of 5mΩ to 400mΩ.


Features
• High Performance LDO with 250mA Guaranteed Continuous Output Current
• Input Voltage Range: 1.5V to 5.5V
• Output Voltage Range: 1.2V to 3.3V
• High PSRR: 75dB @ 10kHz, 50dB @ 1MHz
• Low Quiescent Current: 35µA
• Dropout Voltage: <150mV @ 250mA
• Stable with 1µF to 4.7µF Output Capacitance (±30%) with an ESR range of 5mΩ to 400mΩ
• ±1.8% Output Accuracy Over-Temperature/Load/Line
• Soft-start Limits Input Current Surge During Enable
• Current Limit and Overheat Protection
• -40°C to +85°C Operating Temperature Range
• Available in 2mmx2mm 4-bump WLCSP Package and 1.6mmx1.6mm 6 Ld µTDFN
• Pb-free (RoHS compliant)

Applications
• PDAs, Cell Phones and Smart Phones
• Portable Instruments, MP3 Players
• Handheld Devices including Medical Handhelds

Specifications

Attribute Attribute Value
Manufacturer Renesas
Product Category Linear Voltage Regulators
Series ISL9021A
Packaging Tape & Reel (TR) Alternate Packaging
Mounting-Style SMD/SMT
Package-Case 6-UFDFN
Operating-Temperature -40°C ~ 85°C
Mounting-Type Surface Mount
Output-Type Fixed
Supplier-Device-Package 6-UTDFN (1.6x1.6)
Voltage-Input Up to 5.5V
Number-of-Outputs 1 Output
Current-Output 250mA
Voltage-Output 2.5V
Regulator-Topology Positive Fixed
Voltage-Dropout-Typical 0.15V @ 250mA
Number-of-Regulators 1 Regulator
Current-Limit-Min 260mA
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Output-Voltage 2.5 V
Input-Voltage-MAX 5.5 V
Output-Current 1 A
Input-Voltage-MIN 1.5 V
Voltage-Regulation-Accuracy +/- 0.8 %
Package-Case UTDFN-6
Dropout-Voltage 0.15 V at 250 mA
Dropout-Voltage-Max 0.25 V at 250 mA

Descriptions

LDO Regulator Pos 2.5V 0.25A 6-Pin UTDFN T/R
LDO Voltage Regulators LDO W/LW NOISE HI PSRR LW IQ 1 6 X 1 6

China ISL9021AIRUFZ-T IC REG LINEAR 2.5V 250MA 6UTDFN Renesas Electronics America Inc factory

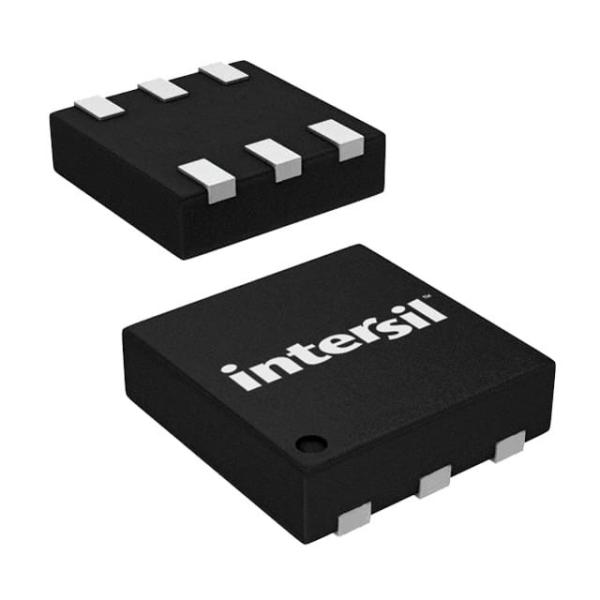

ISL9021AIRUFZ-T IC REG LINEAR 2.5V 250MA 6UTDFN Renesas Electronics America Inc Images
