LP5900SD-3.3/NOPB IC REG LINEAR 3.3V 150MA 6WSON Texas Instruments

Name: LP5900SD33NOPB IC REG LINEAR 33V 150MA 6WSON Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : LP5900SD-3.3/NOPB

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 3.3V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.15V @ 150mA

Current - Output : 150mA

Current - Quiescent (Iq) : 50 µA

Current - Supply (Max) : 230 µA

PSRR : 85dB ~ 40dB (100Hz ~ 100kHz)

Control Features : Enable

Protection Features : Over Temperature, Short Circuit

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 6-WDFN Exposed Pad

Supplier Device Package : 6-WSON (2.2x2.5)

Contact Now

Product Details

Description: The LP5900SD-3.3/NOPB is a fixed output voltage linear voltage regulator from Texas Instruments. It is part of the LP5900 series and is packaged in a Digi-ReelR alternate packaging.

Features:
• Output type: Fixed
• Series: LP5900
• Packaging: Digi-ReelR alternate packaging
• Line regulation: 0.05 % / V
• Output current: 0.15 A
• Quiescent current: 50 uA
• Dropout voltage max: 0.15 V at 150 mA
• Regulator topology: Positive fixed
• Unit weight: 0.000342 oz
• Current output: 150mA
• Voltage output: 3.3V

Applications:
The LP5900SD-3.3/NOPB is suitable for a wide range of applications including portable electronics, consumer electronics, automotive, and industrial applications. It is also suitable for powering microcontrollers, FPGAs, and other digital logic circuits.

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
Series	LP5900
Packaging	Alternate Packaging
Unit-Weight	0.000342 oz
Mounting-Style	SMD/SMT
Package-Case	6-WDFN Exposed Pad
Operating-Temperature	-40°C ~ 85°C
Mounting-Type	Surface Mount
Output-Type	Fixed
Supplier-Device-Package	6-WSON (2.2x2.5)
Voltage-Input	Up to 5.5V
Number-of-Outputs	1 Output
Current-Output	150mA
Voltage-Output	3.3V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	0.08V @ 150mA
Number-of-Regulators	1 Regulator
Current-Limit-Min	-
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Output-Voltage	3.3 V
Input-Voltage-MAX	5.5 V
Output-Current	0.15 A
Input-Voltage-MIN	2.5 V
Load-Regulation	0.001 % / mA
Voltage-Regulation-Accuracy	+/- 2 %
Package-Case	WSON-6
Ib-Input-Bias-Current	25 uA
Quiescent-Current	50 uA
Dropout-Voltage	0.08 V at 150 mA
Dropout-Voltage-Max	0.15 V at 150 mA
Line-Regulation	0.05 % / V

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 150mA 6-WSON (2.2x2.5)

LDO Regulator Pos 3.3V 0.15A 6-Pin WSON EP T/R

LDO Voltage Regulators LOW-NOISE 100MA LDO

China LP5900SD-3.3/NOPB IC REG LINEAR 3.3V 150MA 6WSON Texas Instruments factory

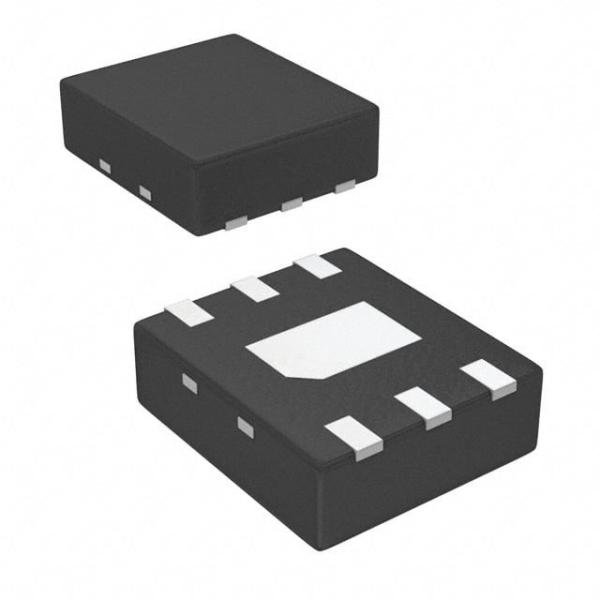

LP5900SD-3.3/NOPB IC REG LINEAR 3.3V 150MA 6WSON Texas Instruments Images
