Brand Name : Diodes Incorporated
Model Number : PT7M8206B12TA5EX
MOQ : 1
Price : Based on current price
Payment Terms : T/T
Supply Ability : In stock
Delivery Time : 3-5 work days
Packaging Details : anti-static bag & cardboard box
Output Configuration : Positive
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : 5.5V
Voltage - Output (Min/Fixed) : 1.2V
Voltage - Output (Max) : -
Voltage Dropout (Max) : -
Current - Output : 300mA
Current - Quiescent (Iq) : 100 µA
Current - Supply (Max) : -
PSRR : 75dB (1kHz)
Control Features : Enable
Protection Features : Over Current, Over Temperature
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-23-5
Attribute | Attribute Value |
---|---|
Manufacturer | Diodes Incorporated |
Product Category | Linear Voltage Regulators |
Series | PT7M8206 |
Packaging | Alternate Packaging |
Package-Case | SC-74A, SOT-753 |
Operating-Temperature | -40°C ~ 85°C |
Mounting-Type | Surface Mount |
Supplier-Device-Package | SOT-23-5 |
Voltage-Input | 1.8 V ~ 5.5 V |
Current-Output | 300mA |
Voltage-Output | 1.2V |
Regulator-Topology | Positive Fixed |
Voltage-Dropout-Typical | - |
Number-of-Regulators | 1 Regulator |
Current-Limit-Min | 400mA |
![]() |

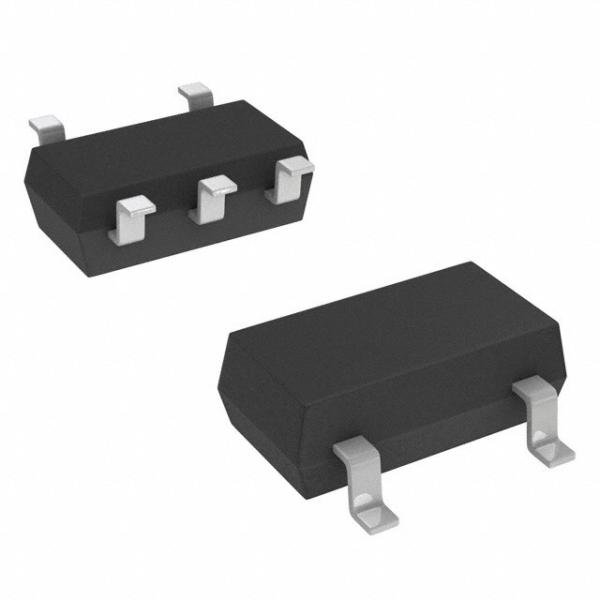

PT7M8206B12TA5EX IC REG LINEAR 1.2V 300MA SOT23-5 Diodes Incorporated Images |
