TCR2EE18,LM(CT IC REG LINEAR 1.8V 200MA ESV Toshiba Semiconductor and Storage

Name: TCR2EE18LMCT IC REG LINEAR 18V 200MA ESV Toshiba Semiconductor and Storage
Brand: Toshiba Semiconductor and Storage
Price: 1 USD

Brand Name : Toshiba Semiconductor and Storage

Model Number : TCR2EE18,LM(CT

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 1.8V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.31V @ 150mA

Current - Output : 200mA

Current - Quiescent (Iq) : 60 µA

Current - Supply (Max) : -

PSRR : 73dB (1kHz)

Control Features : Enable

Protection Features : Over Current

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : SOT-553

Supplier Device Package : ESV

Contact Now

Product Details

E5

General Description
The Teccor line of sensitive SCR semiconductors are half-wave unidirectional, gate-controlled rectifiers (SCR-thyristor) which complement Teccor's line of power SCRs. This group of packages offers ratings of 0.8 A to 10 A, and 200 V to 600 V with gate sensitivities of 12 µA to 500 µA. For gate currents in the 10 mA to 50 mA ranges, see “SCRs” section of this catalog.
The TO-220 and TO-92 are electrically isolated where the case or tab is internally isolated to allow the use of low-cost assembly and convenient packaging techniques.

Features

• Electrically-isolated TO-220 package
• High voltage capability — up to 600 V
• High surge capability — up to 100 A
• Glass-passivated chip

Compak Features

• Surface mount package — 0.8 A series
• New small-profile three-leaded Compak package
• Four gate sensitivities available
• Packaged in embossed carrier tape with 2,500 devices per reel
• Can replace SOT-223

Specifications

Attribute	Attribute Value
Manufacturer	Toshiba Semiconductor and Storage
Product Category	Linear Voltage Regulators
Series	-
Packaging	Alternate Packaging
Package-Case	SOT-553
Operating-Temperature	-40°C ~ 85°C
Mounting-Type	Surface Mount
Supplier-Device-Package	ESV
Voltage-Input	Up to 5.5V
Current-Output	200mA
Voltage-Output	1.8V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	0.23V @ 150mA
Number-of-Regulators	1 Regulator
Current-Limit-Min	-

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 200mA ESV

LDO Regulator Pos 1.8V 0.2A 5-Pin ESV T/R

LDO Voltage Regulators CMOS Point Regulator Single Output

China TCR2EE18,LM(CT IC REG LINEAR 1.8V 200MA ESV Toshiba Semiconductor and Storage factory

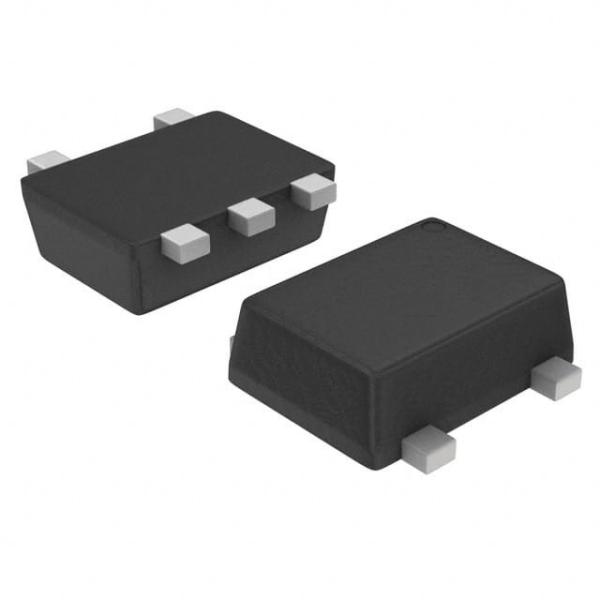

TCR2EE18,LM(CT IC REG LINEAR 1.8V 200MA ESV Toshiba Semiconductor and Storage Images
