AP1186K5-25L-13 IC REG LINEAR 2.5V 1.5A TO263-5 Diodes Incorporated

Name: AP1186K525L13 IC REG LINEAR 25V 15A TO2635 Diodes Incorporated
Brand: Diodes Incorporated
Price: 1 USD

Brand Name : Diodes Incorporated

Model Number : AP1186K5-25L-13

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 16V

Voltage - Output (Min/Fixed) : 2.5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.38V @ 1.5A

Current - Output : 1.5A

Current - Quiescent (Iq) : 10 mA

Current - Supply (Max) : 150 µA

PSRR : 70dB (120Hz)

Control Features : -

Protection Features : Over Current, Over Temperature

Operating Temperature : 0°C ~ 150°C (TJ)

Mounting Type : Surface Mount

Package / Case : TO-263-6, D²Pak (5 Leads + Tab), TO-263BA

Supplier Device Package : TO-263-5

Contact Now

Product Details

General Description

AP1184 is a 4A regulator with extremely low dropout voltage. This product is specifically designed to provide well regulated supply for applications requiring 2.8V or lower voltages from 3.3V ATX power supplies where high efficiency of the switch can be achieved without the cost and complexity associated with switching regulator. One such application is the new graphic chipsets that requires anywhere from 2.4V to 2.7V supply.

Feature

• 0.7V maximum dropout voltage at 4A load current
• Built-in Thermal shutdown
• Output current limiting
• Adjustable or fixed output voltage 1.5V, 1.8V, 2.5V, 3.3V, 5.0V
• Fast transient response
• Good noise rejection
• Packages: SOP-7L, TO220-5L and TO263-5L

Specifications

Attribute	Attribute Value
Manufacturer	Diodes Incorporated
Product Category	Linear Voltage Regulators
Series	-
Packaging	Tape & Reel (TR)
Package-Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Operating-Temperature	0°C ~ 150°C
Mounting-Type	Surface Mount
Supplier-Device-Package	TO-263-5
Voltage-Input	Up to 16V
Current-Output	1.5A
Voltage-Output	2.5V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	0.26V @ 1.5A
Number-of-Regulators	1 Regulator
Current-Limit-Min	1.6A

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 1.5A TO-263-5

LDO Regulator Pos 2.5V 1.5A 6-Pin(5+Tab) TO-263 T/R

China AP1186K5-25L-13 IC REG LINEAR 2.5V 1.5A TO263-5 Diodes Incorporated factory

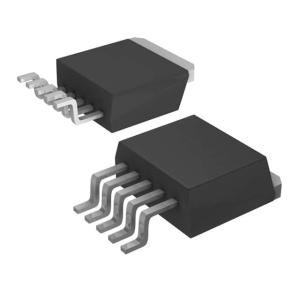

AP1186K5-25L-13 IC REG LINEAR 2.5V 1.5A TO263-5 Diodes Incorporated Images
