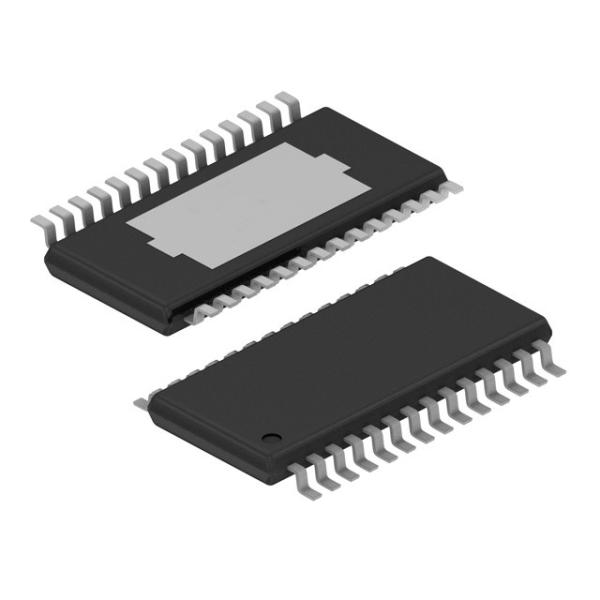

TPS767D301PWPR IC REG LIN POS ADJ 1A 28HTSSOP Texas Instruments

Name: TPS767D301PWPR IC REG LIN POS ADJ 1A 28HTSSOP Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TPS767D301PWPR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Adjustable (Fixed)

Number of Regulators : 2

Voltage - Input (Max) : 10V

Voltage - Output (Min/Fixed) : 3.3V, 1.5 V ~ 5.5 V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.58V @ 1A

Current - Output : 1A

Current - Quiescent (Iq) : 125 µA

Current - Supply (Max) : -

PSRR : 60dB (1kHz)

Control Features : Enable, Reset

Protection Features : Over Current, Over Temperature, Reverse Polarity

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 28-PowerTSSOP (0.173", 4.40mm Width)

Supplier Device Package : 28-HTSSOP
