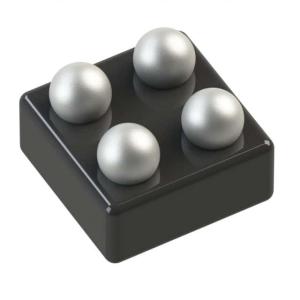

ADP151ACBZ-2.5-R7 IC REG LINEAR 2.5V 200MA 4WLCSP Analog Devices Inc.

Name: ADP151ACBZ25R7 IC REG LINEAR 25V 200MA 4WLCSP Analog Devices Inc
Brand: Analog Devices Inc.
Price: 1 USD

Brand Name : Analog Devices Inc.

Model Number : ADP151ACBZ-2.5-R7

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 2.5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.2V @ 200mA

Current - Output : 200mA

Current - Quiescent (Iq) : 20 µA

Current - Supply (Max) : 350 µA

PSRR : -

Control Features : Enable

Protection Features : Over Current, Over Temperature, Under Voltage Lockout (UVLO)

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 4-WFBGA, WLCSP

Supplier Device Package : 4-WLCSP (0.76x0.76)

Contact Now

Product Details

GENERAL DESCRIPTION

The ADP151 is an ultralow noise, low dropout, linear regulator that operates from 2.2 V to 5.5 V and provides up to 200 mA of output current. The low 140 mV dropout voltage at 200 mA load improves efficiency and allows operation over a wide input voltage range.

FEATURES

Ultralow noise: 9 μV rms
No noise bypass capacitor required
Stable with 1 μF ceramic input and output capacitors
Maximum output current: 200 mA
Input voltage range: 2.2 V to 5.5 V
Low quiescent current IGND = 10 μA with 0 load IGND = 265 μA with 200 mA load
Low shutdown current: <1 μA
Low dropout voltage: 140 mV at 200 mA load
Initial accuracy: ±1%
Accuracy over line, load, and temperature: ±2.5%
16 fixed output voltage options: 1.1 V to 3.3 V
PSRR performance of 70 dB at 10 kHz
Current limit and thermal overload protection
Logic controlled enable
Internal pull-down resistor on EN input
5-lead TSOT package
4-ball, 0.4mm pitch WLCSP

APPLICATIONS

RF, VCO, and PLL power supplies
Mobile phones
Digital camera and audio devices
Portable and battery-powered equipment
Post dc-to-dc regulation
Portable medical devices

Specifications

Attribute	Attribute Value
Manufacturer	Analog Devices
Product Category	Linear Voltage Regulators
Series	ADP151
Packaging	Alternate Packaging
Unit-Weight	0.002413 oz
Mounting-Style	SMD/SMT
Package-Case	4-WFBGA, WLCSP
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Surface Mount
Supplier-Device-Package	4-WLCSP (0.76x0.76)
Voltage-Input	Up to 5.5V
Current-Output	200mA
Voltage-Output	2.5V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	0.135V @ 200mA
Number-of-Regulators	1 Regulator
Current-Limit-Min	220mA
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Input-Voltage-MAX	5.5 V
Output-Current	200 mA
Input-Voltage-MIN	2.2 V
Package-Case	WLCSP-4

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 200mA 4-WLCSP (0.76x0.76)

LDO Regulator Pos 2.5V 0.2A 4-Pin WLCSP T/R

Linear Voltage Regulators 200mA LDO 2.5Vout
