TMS320F28069PFPS IC MCU 32BIT 256KB FLASH 80HTQFP Texas Instruments

Name: TMS320F28069PFPS IC MCU 32BIT 256KB FLASH 80HTQFP Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TMS320F28069PFPS

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Core Processor : C28x

Core Size : 32-Bit Single-Core

Speed : 90MHz

Connectivity : CANbus, I²C, McBSP, SCI, SPI, UART/USART

Peripherals : Brown-out Detect/Reset, DMA, POR, PWM, WDT

Number of I/O : 40

Program Memory Size : 256KB (128K x 16)

Program Memory Type : FLASH

EEPROM Size : -

RAM Size : 50K x 16

Voltage - Supply (Vcc/Vdd) : 1.71V ~ 1.995V

Data Converters : A/D 12x12b

Oscillator Type : Internal

Operating Temperature : -40°C ~ 125°C (TA)

Mounting Type : Surface Mount

Package / Case : 80-TQFP Exposed Pad

Supplier Device Package : 80-HTQFP (12x12)

Contact Now

Product Details

Features

• Beam Angle: 120˚
• Precondition : JEDEC Level 2a
• Dimension : 5.6 x 3.0 x 0.8 mm
• ESD withstand Voltage : up to ± 5KV [HBM]

Applications

• INDOOR LIGHTING : Ambient Light, LED tube, Down light, LED bulb and Ceiling Light

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Microcontrollers
Series	C2000™ C28x Piccolo™
Product	MCU
Packaging	Tray
Unit-Weight	0.013355 oz
Mounting-Style	SMD/SMT
Tradename	Piccolo
Package-Case	80-TQFP Exposed Pad
Operating-Temperature	-40°C ~ 125°C (TA)
Supplier-Device-Package	80-HTQFP (12x12)
Number-of-I-O	40 I/O
Speed	90MHz
EEPROM-Size	-
Core-Processor	C28x
RAM-Size	50K x 16
Program Memory	FLASH
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Connectivity	CAN, I2C, McBSP, SCI, SPI, UART/USART
Voltage-Supply-Vcc-Vdd	1.71 V ~ 1.995 V
Core-Size	32-Bit
Program-Memory-Size	256KB (128K x 16)
Data-Converters	A/D 12x12b
Oscillator-Type	Internal
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Operating-Supply-Voltage	1.8 V 3.3 V
Interface-Type	CAN/I2C/SCI/SPI/UART
Core	C28x
Processor-Series	Piccolo
Data-Bus-Width	32 bit
Supply-Voltage-Max	3.63 V
Supply-Voltage-Min	2.97 V
Package-Case	HTQFP-80
Maximum-Clock-Frequency	80 MHz
Input/output	40 I/O
Data-RAM-Size	50 kB
Number-of-Timers-Counters	3 Timer

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
TMS320F28066PFPQ Microcontrollers and Processors	Piccolo? 32-bit MCU with 90 MHz, FPU, 256 KB Flash 80-HTQFP -40 to 125	Texas Instruments	TMS320F28069PFPS vs TMS320F28066PFPQ
TMS320F28063PFPS Microcontrollers and Processors	Piccolo Microcontroller 80-HTQFP -40 to 125	Texas Instruments	TMS320F28069PFPS vs TMS320F28063PFPS
TMS320F28062PFPS Microcontrollers and Processors	Piccolo? 32-bit MCU with 90 MHz, FPU, 128 KB Flash 80-HTQFP -40 to 125	Texas Instruments	TMS320F28069PFPS vs TMS320F28062PFPS
TMS320F28068PFPS Microcontrollers and Processors	Piccolo Microcontroller 80-HTQFP -40 to 125	Texas Instruments	TMS320F28069PFPS vs TMS320F28068PFPS
TMS320F28066PFPS Microcontrollers and Processors	Piccolo? 32-bit MCU with 90 MHz, FPU, 256 KB Flash 80-HTQFP -40 to 125	Texas Instruments	TMS320F28069PFPS vs TMS320F28066PFPS
TMS320F28069PFPQ Microcontrollers and Processors	Piccolo? 32-bit MCU with 90 MHz, FPU, VCU, 256 KB Flash, CLA 80-HTQFP -40 to 125	Texas Instruments	TMS320F28069PFPS vs TMS320F28069PFPQ
TMS320F28067PFPS Microcontrollers and Processors	Piccolo? 32-bit MCU with 90 MHz, FPU, 256 KB Flash 80-HTQFP -40 to 125	Texas Instruments	TMS320F28069PFPS vs TMS320F28067PFPS
TMS320F28062PFPQ Microcontrollers and Processors	Piccolo? 32-bit MCU with 90 MHz, FPU, 128 KB Flash 80-HTQFP -40 to 125	Texas Instruments	TMS320F28069PFPS vs TMS320F28062PFPQ
TMS320F28065PFPS Microcontrollers and Processors	Piccolo? 32-bit MCU with 90 MHz, FPU, VCU, 128 KB Flash 80-HTQFP -40 to 125	Texas Instruments	TMS320F28069PFPS vs TMS320F28065PFPS
TMS320F28067PFPQ Microcontrollers and Processors	Piccolo? 32-bit MCU with 90 MHz, FPU, 256 KB Flash 80-HTQFP -40 to 125	Texas Instruments	TMS320F28069PFPS vs TMS320F28067PFPQ

Descriptions

C28x C2000? C28x Piccolo? Microcontroller IC 32-Bit 90MHz 256KB (128K x 16) FLASH 80-HTQFP (12x12)

MCU 32-bit C28x RISC 256KB Flash 3.3V 80-Pin HTQFP EP Tray

32-bit Microcontrollers - MCU PICCOLO MCU

China TMS320F28069PFPS IC MCU 32BIT 256KB FLASH 80HTQFP Texas Instruments factory

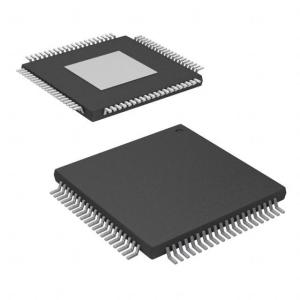

TMS320F28069PFPS IC MCU 32BIT 256KB FLASH 80HTQFP Texas Instruments Images
