HPC46003V20 IC MCU 16BIT ROMLESS 68PLCC National Semiconductor

Name: HPC46003V20 IC MCU 16BIT ROMLESS 68PLCC National Semiconductor
Brand: National Semiconductor
Price: 1 USD

Brand Name : National Semiconductor

Model Number : HPC46003V20

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Core Processor : HPC

Core Size : 16-Bit

Speed : 20MHz

Connectivity : Microwire/Plus (SPI), UART/USART

Peripherals : PWM, WDT

Number of I/O : 52

Program Memory Size : -

Program Memory Type : ROMless

EEPROM Size : -

RAM Size : 256 x 8

Voltage - Supply (Vcc/Vdd) : 4.5V ~ 5.5V

Data Converters : -

Oscillator Type : External

Operating Temperature : 0°C ~ 70°C (TA)

Mounting Type : Surface Mount

Package / Case : 68-LCC (J-Lead)

Supplier Device Package : 68-PLCC (25.13x25.13)

Contact Now

Product Details

Half-brick DC-DC Converter

The InQor® Half-brick converter series is composed of next-generation, board-mountable, isolated, fixed switching frequency dc-dc converters that use synchronous rectification to achieve extremely high power conversion efficiency. Each module is supplied completely encased to provide protection from the harsh environments seen in many industrial and transportation applications.

Operational Features

• High efficiencies, up to 91% at full rated load current
• Delivers full power with minimal derating - no heatsink required
• Operating input voltage range: 34 - 135 V
• Fixed frequency switching provides predictable EMI
• No minimum load requirement

Mechanical Features

• Industry standard Half-brick pin-out configuration
• Standard size: 2.390" x 2.490" x 0.512" (60.6 x 63.1 x 13.0 mm)
• Total weight: 5 oz (142 g)

Control Features

• On/Off control referenced to input side
• Remote sense for the output voltage
• Output voltage trim range of -20%, +10%

Safety Features

• 2250 V, 30 MW input-to-output isolation
• UL/cUL 60950-1 recognized (US & Canada), basic insulation rating
• TUV certified to EN60950-1
• Meets directives which facilitates CE Marking in user’s end product
• Board and plastic components meet UL94V-0 standard
• RoHS compliant (see last page)

Protection Features

• Input under-voltage lockout
• Output current limit and short circuit protection
• Active back bias limit
• Thermal shutdown

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	IC Chips
Series	HPC™
Packaging	Tube
Package-Case	68-LCC (J-Lead)
Operating-Temperature	0°C ~ 70°C (TA)
Supplier-Device-Package	68-PLCC
Number-of-I-O	52 I/O
Speed	20MHz
EEPROM-Size	-
Core-Processor
RAM-Size	256 x 8
Program Memory	ROMless
Peripherals	PWM, WDT
Connectivity	Microwire/Plus (SPI), UART/USART
Voltage-Supply-Vcc-Vdd	4.5 V ~ 5.5 V
Core-Size	16-Bit
Program-Memory-Size	-
Data-Converters	-
Oscillator-Type	External

Descriptions

HPC HPC? Microcontroller IC 16-Bit 20MHz ROMless 68-PLCC

China HPC46003V20 IC MCU 16BIT ROMLESS 68PLCC National Semiconductor factory

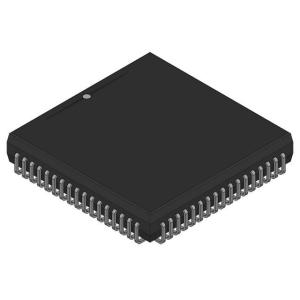

HPC46003V20 IC MCU 16BIT ROMLESS 68PLCC National Semiconductor Images
