XMC4500F144K1024ACXQMA1 IC MCU 32BIT 1MB FLASH 144LQFP Infineon Technologies

Name: XMC4500F144K1024ACXQMA1 IC MCU 32BIT 1MB FLASH 144LQFP Infineon Technologies
Brand: Infineon Technologies
Price: 1 USD

Brand Name : Infineon Technologies

Model Number : XMC4500F144K1024ACXQMA1

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Core Processor : ARM® Cortex®-M4

Core Size : 32-Bit Single-Core

Speed : 120MHz

Connectivity : CANbus, EBI/EMI, Ethernet, I²C, LINbus, SPI, UART, USB

Peripherals : DMA, I²S, LED, POR, PWM, WDT

Number of I/O : 91

Program Memory Size : 1MB (1M x 8)

Program Memory Type : FLASH

EEPROM Size : -

RAM Size : 160K x 8

Voltage - Supply (Vcc/Vdd) : 3.13V ~ 3.63V

Data Converters : A/D 32x12b; D/A 2x12b

Oscillator Type : Internal

Operating Temperature : -40°C ~ 125°C (TA)

Mounting Type : Surface Mount

Package / Case : 144-LQFP Exposed Pad

Supplier Device Package : PG-LQFP-144-13

Contact Now

Product Details

The XMC4500 devices are members of the XMC4000 Family of microcontrollers based on the ARM Cortex-M4 processor core. The XMC4000 is a family of high performance and energy efficient microcontrollers optimized for Industrial Connectivity, Industrial Control, Power Conversion, Sense & Control.

Specifications

Attribute	Attribute Value
Manufacturer	Infineon
Product Category	Microcontrollers
Series	XMC4000
Product	MCU
Packaging	Tray
Unit-Weight	0.045518 oz
Mounting-Style	SMD/SMT
Package-Case	144-LQFP Exposed Pad
Operating-Temperature	-40°C ~ 125°C (TA)
Supplier-Device-Package	144-LQFP (20x20)
Number-of-I-O	91 I/O
Speed	120MHz
EEPROM-Size	-
Core-Processor	ARMR CortexR-M4
RAM-Size	160K x 8
Program Memory	FLASH
Peripherals	DMA, I2S, LED, POR, PWM, WDT
Connectivity	CAN, EBI/EMI, Ethernet, I2C, LIN, SPI, UART, USB
Voltage-Supply-Vcc-Vdd	3.13 V ~ 3.63 V
Core-Size	32-Bit
Program-Memory-Size	1MB (1M x 8)
Data-Converters	A/D 32x12b, D/A 2x12b
Oscillator-Type	Internal
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Operating-Supply-Voltage	3.3 V
Interface-Type	CAN I2C I2S LIN SPI UART USB
Core	ARM Cortex M4
Processor-Series	XMC4000
Part-#-Aliases	AC SP001093082 XMC4500-F144K1024
Data-Bus-Width	32 bit/16 bit
Supply-Voltage-Max	3.63 V
Supply-Voltage-Min	3.13 V
Package-Case	LQFP-144
Maximum-Clock-Frequency	120 MHz
Number-of-ADC-Channels	32 Channel
Input/output	91 I/O
Data-RAM-Size	160 kB
Data-ROM-Size	16 kB
Number-of-Timers-Counters	26 x 16 bit
Watchdog-Timers	Watchdog Timer
ADC-Resolution	12 bit
Data-RAM-Type	SRAM
Data-ROM-Type	ROM
DAC-Resolution	12 bit

Descriptions

ARM? Cortex?-M4 XMC4000 Microcontroller IC 32-Bit 120MHz 1MB (1M x 8) FLASH 144-LQFP (20x20)

MCU 32-bit ARM Cortex M4 RISC 1MB Flash 3.3V 144-Pin LQFP EP Tray

ARM Microcontrollers - MCU XMC4000

China XMC4500F144K1024ACXQMA1 IC MCU 32BIT 1MB FLASH 144LQFP Infineon Technologies factory

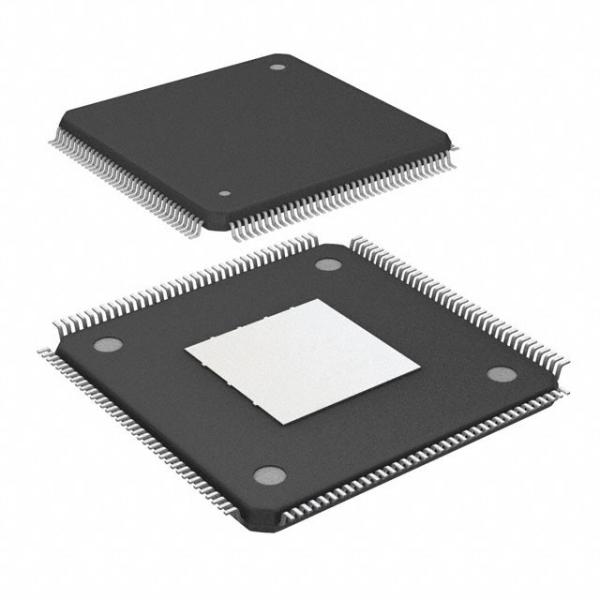

XMC4500F144K1024ACXQMA1 IC MCU 32BIT 1MB FLASH 144LQFP Infineon Technologies Images
