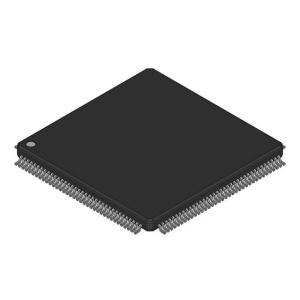

MC68332AVEH16 IC MCU 32BIT ROMLESS 132PQFP Freescale Semiconductor

Name: MC68332AVEH16 IC MCU 32BIT ROMLESS 132PQFP Freescale Semiconductor
Brand: Freescale Semiconductor
Price: 1 USD

Brand Name : Freescale Semiconductor

Model Number : MC68332AVEH16

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Core Processor : CPU32

Core Size : 32-Bit Single-Core

Speed : 16MHz

Connectivity : EBI/EMI, SCI, SPI, UART/USART

Peripherals : POR, PWM, WDT

Number of I/O : 15

Program Memory Size : -

Program Memory Type : ROMless

EEPROM Size : -

RAM Size : 2K x 8

Voltage - Supply (Vcc/Vdd) : 4.5V ~ 5.5V

Data Converters : -

Oscillator Type : Internal

Operating Temperature : -40°C ~ 105°C (TA)

Mounting Type : Surface Mount

Package / Case : 132-BQFP Bumpered

Supplier Device Package : 132-PQFP (24.13x24.13)

Contact Now

Product Details

The MC68332, a highly-integrated 32-bit microcontroller, combines high-performance data manipula tion capabilities with powerful peripheral subsystems. The MCU is built up from standard modules that interface through a common intermodule bus (IMB). Standardization facilitates rapid development of devices tailored for specific applications.

Features

• Central Processing Unit (CPU32)
— 32-Bit Architecture
— Virtual Memory Implementation
— Table Lookup and Interpolate Instruction
— Improved Exception Handling for Controller Applications
— High-Level Language Support
— Background Debugging Mode
— Fully Static Operation
• System Integration Module (SIM)
— External Bus Support
— Programmable Chip-Select Outputs
— System Protection Logic
— Watchdog Timer, Clock Monitor, and Bus Monitor
— Two 8-Bit Dual Function Input/Output Ports
— One 7-Bit Dual Function Output Port
— Phase-Locked Loop (PLL) Clock System
• Time Processor Unit (TPU)
— Dedicated Microengine Operating Independently of CPU32
— 16 Independent, Programmable Channels and Pins
— Any Channel can Perform any Time Function
— Two Timer Count Registers with Programmable Prescalers
— Selectable Channel Priority Levels
• Queued Serial Module (QSM)
— Enhanced Serial Communication Interface
— Queued Serial Peripheral Interface
— One 8-Bit Dual Function Port
• Static RAM Module with TPU Emulation Capability (TPURAM)
— 2-Kbytes of Static RAM
— May be Used as Normal RAM or TPU Microcode Emulation RAM

Specifications

Attribute	Attribute Value
Manufacturer	Freescale / NXP
Product Category	Microcontrollers
Series	M683xx
Packaging	Tray
Unit-Weight	0.166652 oz
Mounting-Style	SMD/SMT
Package-Case	132-BQFP Bumpered
Operating-Temperature	-40°C ~ 105°C (TA)
Supplier-Device-Package	132-PQFP (24.13x24.13)
Number-of-I-O	15 I/O
Speed	16MHz
EEPROM-Size	-
Core-Processor	CPU32
RAM-Size	2K x 8
Program Memory	ROMless
Peripherals	POR, PWM, WDT
Connectivity	EBI/EMI, SCI, SPI, UART/USART
Voltage-Supply-Vcc-Vdd	4.5 V ~ 5.5 V
Core-Size	32-Bit
Program-Memory-Size	-
Data-Converters	-
Oscillator-Type	Internal
Maximum Operating Temperature	+ 105 C
Operating temperature range	- 40 C
Operating-Supply-Voltage	5 V
Interface-Type	QSPI SCI UART
Core	CPU32
Processor-Series	M683xx
Data-Bus-Width	32 bit
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	4.5 V
Package-Case	PQFP-132
Maximum-Clock-Frequency	16 MHz
Input/output	15 I/O
Data-RAM-Size	2 kB
Number-of-Timers-Counters	16 Timer
ADC-Resolution	No ADC

Functional compatible componentForm,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
MC68332GCAG25 Microcontrollers and Processors	32-BIT, 25MHz, MICROCONTROLLER, PQFP144, 20 X 20 MM, 1.40 MM HEIGHT, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-144	Rochester Electronics LLC	MC68332AVEH16 vs MC68332GCAG25
MC68332AMEH16 Microcontrollers and Processors	32-BIT, 16MHz, MICROCONTROLLER, PQFP132	NXP Semiconductors	MC68332AVEH16 vs MC68332AMEH16
MC68332GCEH16 Microcontrollers and Processors	32-BIT, 16MHz, MICROCONTROLLER, PQFP132, 0.950 X 0.950 INCH, 0.025 INCH PITCH, PLASTIC, ROHS COMPLIANT, QFP-132	Rochester Electronics LLC	MC68332AVEH16 vs MC68332GCEH16
MC68332ACEH16 Microcontrollers and Processors	32-BIT, 16MHz, MICROCONTROLLER, PQFP132	NXP Semiconductors	MC68332AVEH16 vs MC68332ACEH16
MC68332GMEH16 Microcontrollers and Processors	32-BIT, 16MHz, MICROCONTROLLER, PQFP132	NXP Semiconductors	MC68332AVEH16 vs MC68332GMEH16
MC68LK332ACAG16 Microcontrollers and Processors	32-BIT, 16MHz, MICROCONTROLLER, PQFP144	NXP Semiconductors	MC68332AVEH16 vs MC68LK332ACAG16
MC68LK332ACEH16 Microcontrollers and Processors	32-BIT, 16MHz, MICROCONTROLLER, PQFP132	NXP Semiconductors	MC68332AVEH16 vs MC68LK332ACEH16
MC68332ACAG16 Microcontrollers and Processors	32-BIT, 16MHz, MICROCONTROLLER, PQFP144, 20 X 20 MM, 1.40 MM HEIGHT, 0.50 MM PITCH, ROHS COMPLIANT, LQFP-144	Rochester Electronics LLC	MC68332AVEH16 vs MC68332ACAG16
MC68LK332GCEH16 Microcontrollers and Processors	32-BIT, 16MHz, MICROCONTROLLER, PQFP132	NXP Semiconductors	MC68332AVEH16 vs MC68LK332GCEH16
MC68LK332GCAG16 Microcontrollers and Processors	32-BIT, 16MHz, MICROCONTROLLER, PQFP144	NXP Semiconductors	MC68332AVEH16 vs MC68LK332GCAG16

Descriptions

CPU32 M683xx Microcontroller IC 32-Bit 16MHz ROMless 132-PQFP (24.13x24.13)

MCU 32-bit ColdFire RISC ROMLess 5V Automotive 132-Pin PQFP Tray

32-bit Microcontrollers - MCU 32B MCU 2KRAM TPU QSM
