S-812C25AMC-C2FT2U IC REG LINEAR 2.5V 30MA SOT23-5 ABLIC Inc.

Name: S812C25AMCC2FT2U IC REG LINEAR 25V 30MA SOT235 ABLIC Inc
Brand: ABLIC Inc.
Price: 1 USD

Brand Name : ABLIC Inc.

Model Number : S-812C25AMC-C2FT2U

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 16V

Voltage - Output (Min/Fixed) : 2.5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.68V @ 10mA

Current - Output : 30mA

Current - Quiescent (Iq) : 500 nA

Current - Supply (Max) : 1.6 µA

PSRR : -

Control Features : -

Protection Features : -

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : SC-74A, SOT-753

Supplier Device Package : SOT-23-5

Contact Now

Product Details

HIGH OPERATING VOLTAGE CMOS VOLTAGE REGULATOR

The S-812C Series is a high-withstand voltage regulator IC which is developed by using the CMOS technology. This IC is suitable for applications which require withstand because its maximum voltage for operation is as high as 16 V, also for portable device having the low current consumption because this IC not only has the low currentconsumption but also a power-off circuit. This IC operates stably due to the internal phase compensation circuit so that users are

able to use ceramic capacitor as the output capacitor.

Features

•Low current consumption: Current at operation: Typ. 1.0 µA, Max. 1.8 µA (product with 3.0 V)
•Output voltage: 2.0 to 6.0 V, selectable in 0.1 V step.
•Output voltage accuracy: ±2.0%
•Output current: 50 mA capable (3.0 V output product, VIN=5 V)^*1
75 mA capable (5.0 V output product, VIN=7 V)^*1
•Dropout voltage: Typ. 120 mV (VOUT= 5.0 V, IOUT= 10 mA)
•Built-in Power-off circuit: Selectable ifpower-off function is available or not.
Active high or low in the regulator is selectable.
•Short-circuit protection: Selectable with/without short-circuit protection.
Short-circuited current 40 mA Typ.: in the product with protection.
•Operation voltage: 16 V max.
•Lead-free product
*1.Attention should be paid to the power dissipation of the package when the load is large.

Applications
•Power source for home electric/electronic appliances
•Power source for battery-powered devices
•Power source for communication devices

Specifications

Attribute	Attribute Value
Manufacturer	SII
Product Category	IC Chips
Packaging	Reel

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 30mA SOT-23-5

LDO Voltage Regulators Low Drop-Out Voltage Regulator

China S-812C25AMC-C2FT2U IC REG LINEAR 2.5V 30MA SOT23-5 ABLIC Inc. factory

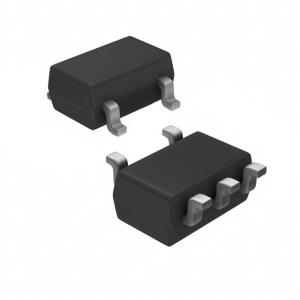

S-812C25AMC-C2FT2U IC REG LINEAR 2.5V 30MA SOT23-5 ABLIC Inc. Images
