RT9022GE IC REG LIN POS ADJ 60MA SOT23-6 Richtek USA Inc.

Name: RT9022GE IC REG LIN POS ADJ 60MA SOT236 Richtek USA Inc
Brand: Richtek USA Inc.
Price: 1 USD

Brand Name : Richtek USA Inc.

Model Number : RT9022GE

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Adjustable

Number of Regulators : 1

Voltage - Input (Max) : 20V

Voltage - Output (Min/Fixed) : 1.25V

Voltage - Output (Max) : 19.7V

Voltage Dropout (Max) : 0.3V @ 30mA

Current - Output : 60mA

Current - Quiescent (Iq) : 80 µA

Current - Supply (Max) : -

PSRR : 65dB ~ 55dB (120Hz ~ 10kHz)

Control Features : Enable, Soft Start

Protection Features : Over Current, Over Temperature

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : SOT-23-6

Supplier Device Package : SOT-23-6

Contact Now

Product Details

General Description

The RT9022 is designed for positive CCD bias applications with critical performance and space requirements. The RT9022 performance is optimized for battery-powered systems to deliver low noise and low quiescent current and with soft start function.
The RT9022 also works well with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications and consumes less than 1μA in shutdown mode.
The other features include ultra low dropout voltage, high output accuracy, and current limiting protection. The part is available in the SOT-23-6, TSOT-23-6 and SC-70-6 packages.

Features

• Low Quiescent Current (Typically 40μA)
• Wide Operating Voltage Ranges : 5V to 20V
• Ultra-Fast Transient Response
• Tight Load and Line Regulation
• Current Limiting Protection
• Thermal Shutdown Protection
• Adjustable Soft Start Time
• RoHS Compliant and 100% Lead (Pb)-Free

Applications

• DSC
• Camcorder

Specifications

Attribute	Attribute Value
Manufacturer	Richtek
Product Category	Linear Voltage Regulators
Series	-
Packaging	Tape & Reel (TR)
Package-Case	SOT-23-6
Operating-Temperature	-40°C ~ 85°C
Mounting-Type	Surface Mount
Supplier-Device-Package	SOT-23-6
Voltage-Input	5 V ~ 20 V
Current-Output	60mA
Voltage-Output	-
Regulator-Topology	-
Voltage-Dropout-Typical	0.2V @ 30mA
Number-of-Regulators	1 Regulator
Current-Limit-Min	60mA

Descriptions

Linear Voltage Regulator IC 1 Output 60mA SOT-23-6

China RT9022GE IC REG LIN POS ADJ 60MA SOT23-6 Richtek USA Inc. factory

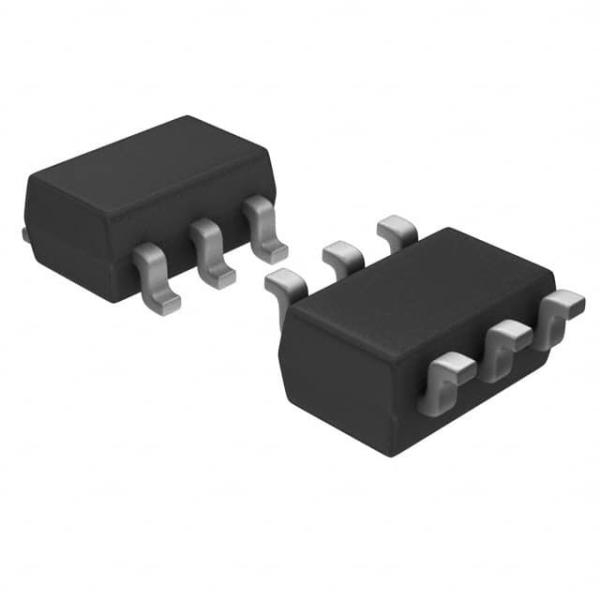

RT9022GE IC REG LIN POS ADJ 60MA SOT23-6 Richtek USA Inc. Images
