TC1014-3.3VCT713 IC REG LINEAR 3.3V 50MA SOT23-5 Microchip Technology

Brand Name : Microchip Technology

Model Number : TC1014-3.3VCT713

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 6V

Voltage - Output (Min/Fixed) : 3.3V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.12V @ 50mA

Current - Output : 50mA

Current - Quiescent (Iq) : 80 µA

Current - Supply (Max) : -

PSRR : 64dB (1kHz)

Control Features : Enable

Protection Features : Over Current, Over Temperature

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : SC-74A, SOT-753

Supplier Device Package : SOT-23-5

Contact Now

Product Details

TC1014-3.3VCT713 Description

The Microchip TC1014-3.3VCT713 is a highly accurate low dropout voltage regulator designed for use in battery operated systems.The TC1014-3.3VCT713 features an advanced CMOS architecture with low noise and high performance. The device has a quiescent current of 500nA.

TC1014-3.3VCT713 Features

• Low Supply Current (50 µA, typical)
• Low Dropout Voltage
• Choice of 50 mA (TC1014), 100 mA (TC1015) and 150 mA (TC1185) Output
• High Output Voltage Accuracy
• Standard or Custom Output Voltages
• Power-Saving Shutdown Mode
• Reference Bypass Input for Ultra Low-Noise Operation
• Overcurrent and Overtemperature Protection
• Space-Saving 5-Pin SOT-23 Package
• Pin-Compatible Upgrades for Bipolar Regulators
• Standard Output Voltage Options:
- 1.8V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 3.0V, 3.3V, 3.6V, 4.0V, 5.0V

TC1014-3.3VCT713 Applications

• Battery-Operated Systems
• Portable Computers
• Medical Instruments
• Instrumentation
• Cellular/GSM/PHS Phones
• Linear Post-Regulator for SMPS
• Pagers

Specifications

Attribute Attribute Value
Manufacturer Microchip Technology
Product Category Linear Voltage Regulators
Series -
Packaging Alternate Packaging
Unit-Weight 0.001058 oz
Mounting-Style SMD/SMT
Package-Case SC-74A, SOT-753
Operating-Temperature -40°C ~ 125°C
Mounting-Type Surface Mount
Output-Type Fixed
Supplier-Device-Package SOT-23-5
Voltage-Input Up to 6V
Number-of-Outputs 1 Output
Current-Output 50mA
Voltage-Output 3.3V
Regulator-Topology Positive Fixed
Voltage-Dropout-Typical 0.085V @ 50mA
Number-of-Regulators 1 Regulator
Current-Limit-Min -
Maximum Operating Temperature + 125 C
Operating temperature range - 40 C
Output-Voltage 3.3 V
Input-Voltage-MAX 6 V
Output-Current 50 mA
Input-Voltage-MIN + 2.7 V
Load-Regulation 0.5 %
Voltage-Regulation-Accuracy 2.5 %
Package-Case SOT-23-5
Dropout-Voltage 0.002 V at 100 uA
Dropout-Voltage-Max 85 mV at 50 mA
Line-Regulation 0.05 %

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 50mA SOT-23-5
LDO Regulator Pos 3.3V 0.05A Automotive 5-Pin SOT-23 T/R
LDO Voltage Regulators 50mA LDO

China TC1014-3.3VCT713 IC REG LINEAR 3.3V 50MA SOT23-5 Microchip Technology factory

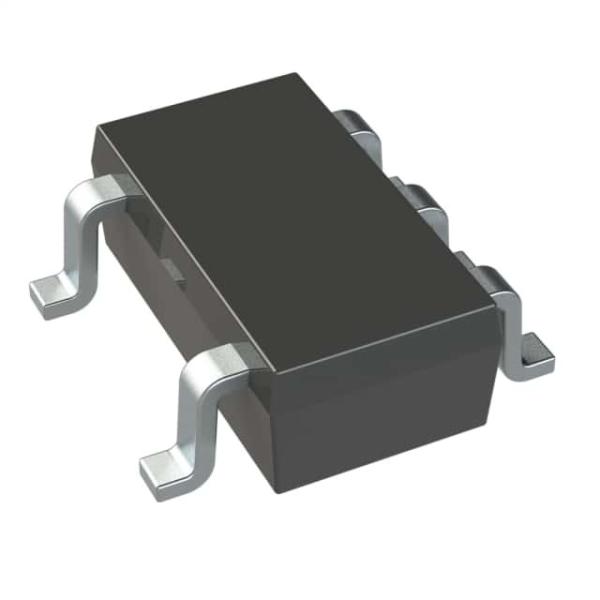

TC1014-3.3VCT713 IC REG LINEAR 3.3V 50MA SOT23-5 Microchip Technology Images
