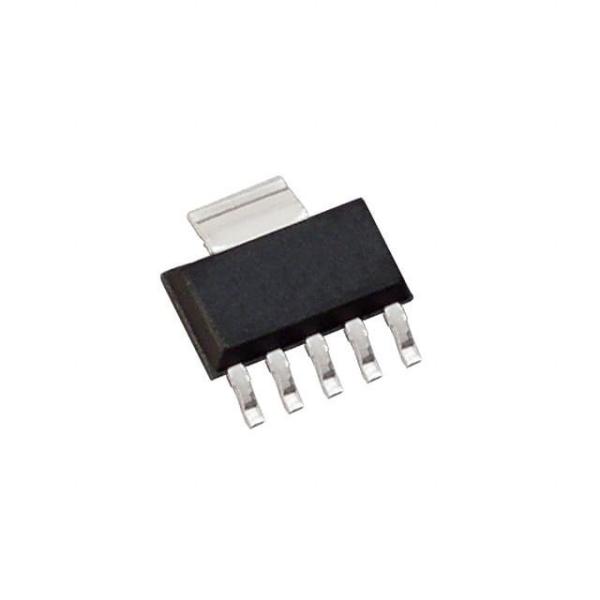

TPS73701DCQR IC REG LINEAR POS ADJ 1A SOT223 Texas Instruments

Brand Name : Texas Instruments

Model Number : TPS73701DCQR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Adjustable

Number of Regulators : 1

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 1.2V

Voltage - Output (Max) : 5.5V

Voltage Dropout (Max) : 0.5V @ 1A

Current - Output : 1A

Current - Quiescent (Iq) : 400 µA

Current - Supply (Max) : 1.3 mA

PSRR : 58dB ~ 37dB (100Hz ~ 10kHz)

Control Features : Enable

Protection Features : Over Current, Over Temperature, Reverse Polarity

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : SOT-223-6

Supplier Device Package : SOT-223-6

Contact Now

Product Details

DESCRIPTION

Single Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.
Packaged either in TO-220AC, ISOWATT220AC, TO-220FPAC or D2PAK, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

FEATURES AND BENEFITS
■ Very small conduction losses
■ Negligible switching losses
■ Extremely fast switching
■ Insulated package: ISOWATT220AC, TO-220FPAC
Insulating voltage = 2000V DC
Capacitance = 12pF

Specifications

Attribute Attribute Value
Manufacturer Texas Instruments
Product Category Linear Voltage Regulators
Series TPS73701
Packaging Alternate Packaging
Unit-Weight 0.004265 oz
Mounting-Style SMD/SMT
Package-Case SOT-223-6
Operating-Temperature -40°C ~ 125°C
Mounting-Type Surface Mount
Output-Type Adjustable
Supplier-Device-Package SOT-223-6
Voltage-Input 2.2 V ~ 5.5 V
Number-of-Outputs 1 Output
Current-Output 1A
Voltage-Output 1.2 V ~ 5.5 V
Regulator-Topology Positive Adjustable
Voltage-Dropout-Typical 0.13V @ 1A
Number-of-Regulators 1 Regulator
Current-Limit-Min 1.05A
Pd-Power-Dissipation 2.22 W
Maximum Operating Temperature + 125 C
Operating temperature range - 40 C
Output-Voltage 1.2 V to 5.5 V
Input-Voltage-MAX 5.5 V
Output-Current 1 A
Input-Voltage-MIN + 2.2 V
Load-Regulation 0.002 % / mA
Voltage-Regulation-Accuracy 1 %
Package-Case SOT-223-6
Ib-Input-Bias-Current 300 uA
Reference-Voltage 1.21 V
Dropout-Voltage 0.13 V at 1 A
Dropout-Voltage-Max 500 mV at 1 A
Line-Regulation 0.01 % / V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part# Description Manufacturer Compare
TPS73701DCQG4
Power Circuits		 Single Output LDO, 1A, Adj. (1.2 to 5.0V), Reverse Current Protection 6-SOT-223 -40 to 125 Texas Instruments TPS73701DCQR vs TPS73701DCQG4
TPS73701DCQRG4
Power Circuits		 Single Output LDO, 1A, Adj. (1.2 to 5.0V), Reverse Current Protection 6-SOT-223 -40 to 125 Texas Instruments TPS73701DCQR vs TPS73701DCQRG4
TPS73701DCQ
Power Circuits		 Single Output LDO, 1A, Adj. (1.2 to 5.0V), Reverse Current Protection 6-SOT-223 -40 to 125 Texas Instruments TPS73701DCQR vs TPS73701DCQ

Descriptions

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.2 V ~ 5.5 V 1A SOT-223-6
LDO Regulator Pos 1.2V to 5.5V 1A 6-Pin(5+Tab) SOT-223 T/R
LDO Voltage Regulators 1.0A LDO Regulator
