LM317LBZRPG IC REG LINEAR POS ADJ 100MA TO92 onsemi

Name: LM317LBZRPG IC REG LINEAR POS ADJ 100MA TO92 onsemi
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : LM317LBZRPG

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Adjustable

Number of Regulators : 1

Voltage - Input (Max) : 40V

Voltage - Output (Min/Fixed) : 1.2V

Voltage - Output (Max) : 37V

Voltage Dropout (Max) : -

Current - Output : 100mA

Current - Quiescent (Iq) : 10 mA

Current - Supply (Max) : -

PSRR : 80dB (120Hz)

Control Features : -

Protection Features : Over Current, Over Temperature, Short Circuit

Operating Temperature : -40°C ~ 125°C

Mounting Type : Through Hole

Package / Case : TO-226-3, TO-92-3 Long Body (Formed Leads)

Supplier Device Package : TO-92 (TO-226)

Contact Now

Product Details

100 mA Adjustable Output, Positive Voltage Regulator

The LM317L is an adjustable 3−terminal positive voltage regulator capable of supplying in excess of 100 mA over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making them essentially blow−out proof.

The LM317L serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317L can be used as a precision current regulator.

Features

• Pb−Free Packages are Available
• Output Current in Excess of 100 mA
• Output Adjustable Between 1.2 V and 37 V
• Internal Thermal Overload Protection
• Internal Short Circuit Current Limiting
• Output Transistor Safe−Area Compensation
• Floating Operation for High Voltage Applications
• Standard 3−Lead Transistor Package
• Eliminates Stocking Many Fixed Voltages

Specifications

Attribute	Attribute Value
Manufacturer	onsemi
Product Category	Linear Voltage Regulators
Series	LM317L
Packaging	Cut Tape (CT) Alternate Packaging
Unit-Weight	0.016000 oz
Mounting-Style	Through Hole
Package-Case	TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Through Hole
Output-Type	Adjustable
Supplier-Device-Package	TO-92-3
Voltage-Input	Up to 40V
Number-of-Outputs	1 Output
Current-Output	100mA
Voltage-Output	1.2 V ~ 37 V
Regulator-Topology	Positive Adjustable
Voltage-Dropout-Typical	-
Number-of-Regulators	1 Regulator
Current-Limit-Min	-
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Polarity	Positive
Output-Voltage	1.2 V to 37 V
Input-Voltage-MAX	40 V
Output-Current	20 mA
Input-Voltage-MIN	40 V
Load-Regulation	0.5 %
Package-Case	TO-92
Line-Regulation	0.07 % / V

Descriptions

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.2 V ~ 37 V 100mA TO-92-3

Standard Regulator Pos 1.2V to 37V 0.02A 3-Pin TO-92 Bag

Linear Voltage Regulators 100mA ADJ 1.2-37V Positive

China LM317LBZRPG IC REG LINEAR POS ADJ 100MA TO92 onsemi factory

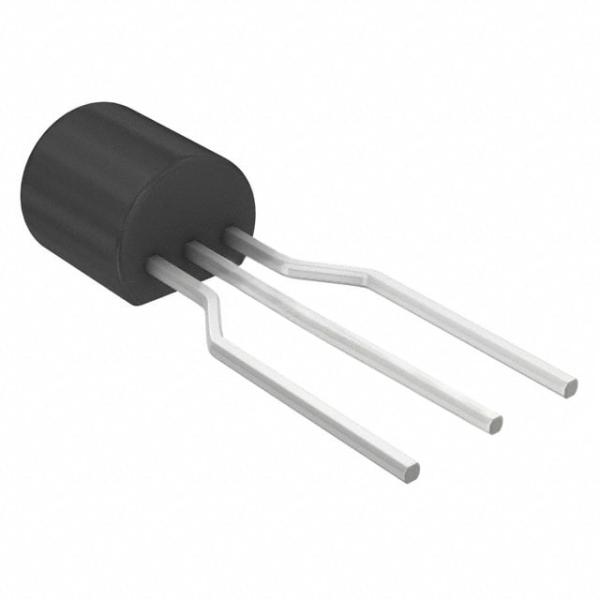

LM317LBZRPG IC REG LINEAR POS ADJ 100MA TO92 onsemi Images
