MIC39100-3.3WS-TR IC REG LINEAR 3.3V 1A SOT223-3 Microchip Technology

Name: MIC3910033WSTR IC REG LINEAR 33V 1A SOT2233 Microchip Technology
Brand: Microchip Technology
Price: 1 USD

Brand Name : Microchip Technology

Model Number : MIC39100-3.3WS-TR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 16V

Voltage - Output (Min/Fixed) : 3.3V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.63V @ 1A

Current - Output : 1A

Current - Quiescent (Iq) : -

Current - Supply (Max) : -

PSRR : -

Control Features : -

Protection Features : Over Current, Over Temperature, Reverse Polarity

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : TO-261-4, TO-261AA

Supplier Device Package : SOT-223-3

Contact Now

Product Details

MIC39100-3.3WS-TR Description

The Microchip MIC39100-3.3WS-TR is a high performance low dropout voltage regulator with full protection features such as overcurrent limiting, thermal shutdown, reverse battery protection, etc. The MIC39100-3.3WS-TR is stable over the temperature range of -40°C to 125°C and it has an output voltage of 3.3V.

MIC39100-3.3WS-TR Features

• Fixed and Adjustable Output Voltages to 1.24V
• 410 mV Typical Dropout at 1A Load
- Best Recommended for 3.0V to 2.5V Conversion
- Best Recommended for 2.5V to 1.8V Conversion
• 1A Minimum Guaranteed Output Current
• 1% Initial Accuracy
• Low Ground Current
• Current-Limiting and Thermal-Shutdown Protection
• Reversed-Battery and Reversed-Leakage Protection
• Fast Transient Response
• Low Profile SOT-223 Package
• Power SO-8 Package

MIC39100-3.3WS-TR Applications

• LDO Linear Regulator for PC Add-In Cards
• High-Efficiency Linear Power Supplies
• SMPS Post Regulator
• Multimedia and PC Processor Supplies
• Battery Chargers
• Low Voltage Microcontrollers and Digital Logic

Specifications

Attribute	Attribute Value
Manufacturer	Microchip Technology
Product Category	Linear Voltage Regulators
Series	-
Packaging	Tape & Reel (TR) Alternate Packaging
Unit-Weight	0.008826 oz
Mounting-Style	SMD/SMT
Package-Case	TO-261-4, TO-261AA
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Surface Mount
Output-Type	Fixed
Supplier-Device-Package	SOT-223
Tolerance	1 %
Voltage-Input	Up to 16V
Number-of-Outputs	1 Output
Current-Output	1A
Voltage-Output	3.3V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	0.41V @ 1A
Number-of-Regulators	1 Regulator
Current-Limit-Min	-
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Output-Voltage	3.3 V
Input-Voltage-MAX	16 V
Output-Current	1 A
Load-Regulation	0.2 %
Part-#-Aliases	MIC39100-3.3WS TR
Package-Case	SOT-223-3
Ib-Input-Bias-Current	120 nA
Reference-Voltage	1.24 V
Dropout-Voltage-Max	630 mV
Line-Regulation	0.06 %

Descriptions

Linear Voltage Regulator IC 1 Output 1A SOT-223

LDO Regulator Pos 3.3V 1A 4-Pin(3+Tab) SOT-223 T/R

LDO Voltage Regulators

China MIC39100-3.3WS-TR IC REG LINEAR 3.3V 1A SOT223-3 Microchip Technology factory

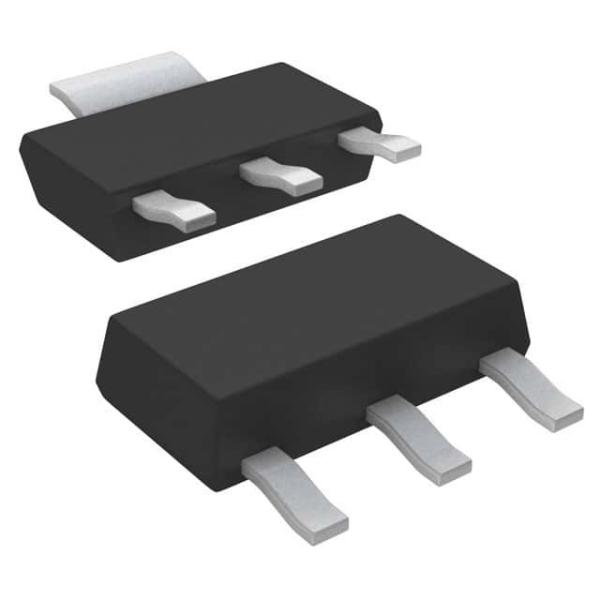

MIC39100-3.3WS-TR IC REG LINEAR 3.3V 1A SOT223-3 Microchip Technology Images
