TPS71533DCKR IC REG LINEAR 3.3V 50MA SC70-5 Texas Instruments

Name: TPS71533DCKR IC REG LINEAR 33V 50MA SC705 Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TPS71533DCKR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 24V

Voltage - Output (Min/Fixed) : 3.3V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.75V @ 50mA

Current - Output : 50mA

Current - Quiescent (Iq) : 4.2 µA

Current - Supply (Max) : -

PSRR : 60dB (100kHz)

Control Features : -

Protection Features : Over Current

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 5-TSSOP, SC-70-5, SOT-353

Supplier Device Package : SC-70-5

Contact Now

Product Details

Description

The TPS71533DCKR is a Low-dropout (LDO) Voltage Regulator offers the benefits of high input voltage, low-dropout voltage and low-power operation. The device, which operate over an input range of 2.5 to 24V, are stable with any capacitor greater than or equal to 0.47µF. The low dropout voltage and low quiescent current allow operation at extremely low power levels. Therefore, the devices are ideal for powering battery management ICs. Specifically, because the devices are enabled as soon as the applied voltage reaches the minimum input voltage, the output is quickly available to power continuously operating battery charging ICs. The usual PNP pass transistor has been replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the low dropout voltage, typically 415mV at 50mA of load current, is directly proportional to the load current. The low quiescent current (3.2µA typically) is stable over the entire range of output load current (0 to 50mA).

Features

Low 3.2µA quiescent current at 50mA
Stable with any capacitor >=0.47µF
50mA Low-dropout regulator
Minimum and maximum specified current limit
Green product and no Sb/Br

Application

Power Management, Consumer Electronics, Portable Devices

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
Series	TPS71533
Packaging	Alternate Packaging
Unit-Weight	0.000088 oz
Mounting-Style	SMD/SMT
Package-Case	5-TSSOP, SC-70-5, SOT-353
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Surface Mount
Output-Type	Fixed
Supplier-Device-Package	SC-70-5
Voltage-Input	Up to 24V
Number-of-Outputs	1 Output
Current-Output	50mA
Voltage-Output	3.3V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	0.415V @ 50mA
Number-of-Regulators	1 Regulator
Current-Limit-Min	125mA
Pd-Power-Dissipation	0.32 W
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Output-Voltage	3.3 V
Input-Voltage-MAX	24 V
Output-Current	50 mA
Input-Voltage-MIN	+ 2.5 V
Load-Regulation	22 mV
Voltage-Regulation-Accuracy	4 %
Software Development Kit	TPS71533EVM
Part-#-Aliases	HPA00444AIDBVT
Package-Case	SC-70-5
Ib-Input-Bias-Current	3.2 uA
Dropout-Voltage	0.415 V at 50 mA
Dropout-Voltage-Max	750 mV at 50 mA
Line-Regulation	20 mV

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
BQ71533DCKR Power Circuits	50 mA, 24 V, 3.2-μA Iq, Low-Dropout Linear Regulator in SC70 Package 5-SC70 -40 to 125	Texas Instruments	TPS71533DCKR vs BQ71533DCKR
TPS71533DCKRG4 Power Circuits	50 mA, 24 V, 3.2-μA Iq, Low-Dropout Linear Regulator in SC70 Package 5-SC70 -40 to 125	Texas Instruments	TPS71533DCKR vs TPS71533DCKRG4
TPS71533QDCKRQ1 Power Circuits	50-mA, 24-V, 3.2-μA Supply Current, Low-Dropout Linear Regulators in SC70 Package 5-SC70 -40 to 125	Texas Instruments	TPS71533DCKR vs TPS71533QDCKRQ1
BQ71533DCKRG4 Power Circuits	3.3V FIXED POSITIVE LDO REGULATOR, 0.75V DROPOUT, PDSO5, GREEN, PLASTIC, SC-70, SOT-323, 5 PIN	Texas Instruments	TPS71533DCKR vs BQ71533DCKRG4

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 50mA SC-70-5

LDO Regulator Pos 3.3V 0.05A 5-Pin SC-70 T/R

LDO Voltage Regulators 50mA 3.3V HI LDO

China TPS71533DCKR IC REG LINEAR 3.3V 50MA SC70-5 Texas Instruments factory

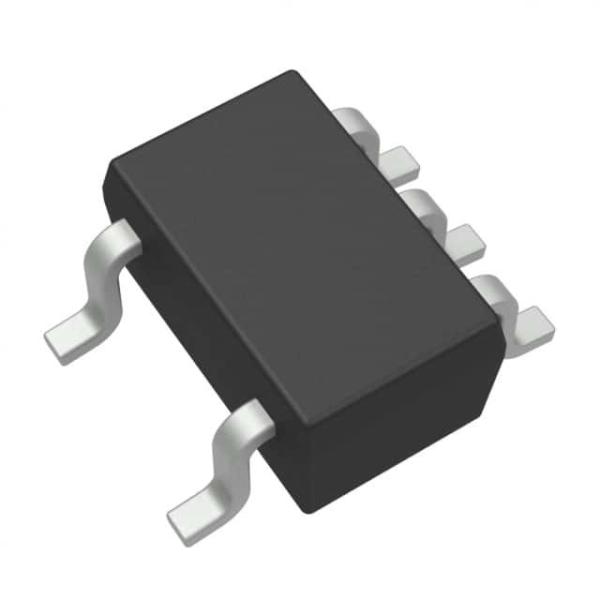

TPS71533DCKR IC REG LINEAR 3.3V 50MA SC70-5 Texas Instruments Images
