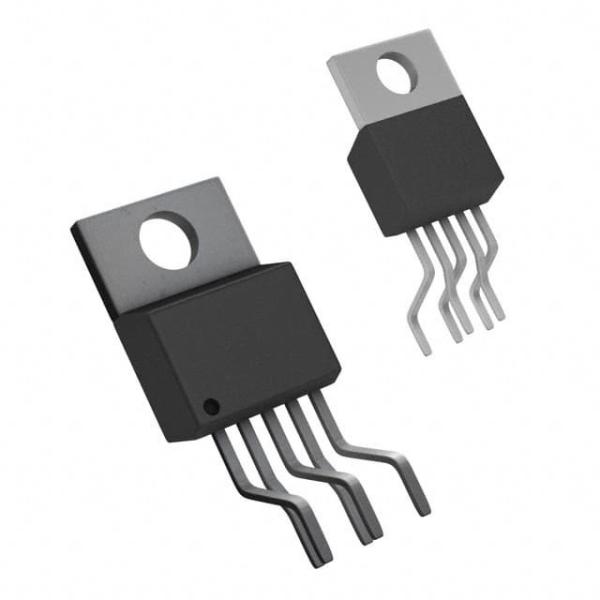

LM2991T/LF03 IC REG LIN NEG ADJ 1A TO220-5 Texas Instruments

Product Categories

Sanhuang electronics (Hong Kong) Co., Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: LM2991TLF03 IC REG LIN NEG ADJ 1A TO2205 Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : LM2991T/LF03

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Negative

Output Type : Adjustable

Number of Regulators : 1

Voltage - Input (Max) : -26V

Voltage - Output (Min/Fixed) : -3V

Voltage - Output (Max) : -24V

Voltage Dropout (Max) : 1V @ 1A

Current - Output : 1A

Current - Quiescent (Iq) : 0.7 mA

Current - Supply (Max) : 5 mA

PSRR : 60dB (1kHz)

Control Features : Enable

Protection Features : Over Temperature, Short Circuit

Operating Temperature : -40°C ~ 125°C

Mounting Type : Through Hole

Package / Case : TO-220-5 Formed Leads

Supplier Device Package : TO-220-5

Contact Now

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
Series	LM2991
Packaging	Tube
Unit-Weight	0.105822 oz
Mounting-Style	Through Hole
Package-Case	TO-220-5 Formed Leads
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Through Hole
Output-Type	Adjustable
Supplier-Device-Package	TO-220-5
Voltage-Input	Down to -26V
Number-of-Outputs	1 Output
Current-Output	1A
Voltage-Output	-3 V ~ -24 V
Regulator-Topology	Negative Adjustable
Voltage-Dropout-Typical	0.6V @ 1A
Number-of-Regulators	1 Regulator
Current-Limit-Min	1.5A
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Output-Voltage	- 24 V to - 3 V
Input-Voltage-MAX	300 mV
Output-Current	1 A
Input-Voltage-MIN	- 26 V
Load-Regulation	0.4 %
Package-Case	TO-220-5
Ib-Input-Bias-Current	700 uA
Quiescent-Current	5 mA
Reference-Voltage	- 1.186 V
Dropout-Voltage	0.1 V at 100 mA 0.6 V at 1 A
Dropout-Voltage-Max	0.2 V at 100 mA 0.8 V at 1 A
Line-Regulation	0.04 %/V

Linear Voltage Regulator IC Negative Adjustable 1 Output -3 V ~ -24 V 1A TO-220-5

LDO Regulator Neg -3V to -24V 1A 5-Pin(5+Tab) TO-220 Tube

LDO Voltage Regulators A 926-LM2991T/NOPB
