MIC5301YMT-TR IC REG LIN POS ADJ 150MA 6TMLF Microchip Technology

Name: MIC5301YMTTR IC REG LIN POS ADJ 150MA 6TMLF Microchip Technology
Brand: Microchip Technology
Price: 1 USD

Brand Name : Microchip Technology

Model Number : MIC5301YMT-TR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Adjustable

Number of Regulators : 1

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : 1.25V

Voltage - Output (Max) : 5.5V

Voltage Dropout (Max) : 0.1V @ 150mA

Current - Output : 150mA

Current - Quiescent (Iq) : 120 µA

Current - Supply (Max) : -

PSRR : 75dB ~ 50dB (1kHz ~ 20kHz)

Control Features : Enable

Protection Features : Over Current, Over Temperature

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 6-UFDFN Exposed Pad, 6-TMLF®

Supplier Device Package : 6-TMLF® (1.6x1.6)

Contact Now

Product Details

General Description

The MIC5301 is a high performance, single output ultra low LDO (ULDO™) regulator, offering low total output noise. The MIC5301 is capable of sourcing 150mA output current and offers high PSRR and low output noise, making it an ideal solution for RF applications.

Features

• Ultra low dropout voltage – 40mV @ 150mA
• Input voltage range: 2.3V to 5.5V
• 150mA guaranteed output current
• Stable with ceramic output capacitors
• Ultra low output noise – 30µVrms
• Low quiescent current – 85µA total
• High PSRR – up to 75dB@1kHz
• 35µs turn-on time
• High output accuracy
• ± 2% initial accuracy
• ± 3% over temperature
• Thermal shutdown and current limit protection
• Tiny 6-pin 1.6mm x 1.6mm Thin MLF® leadless package
• Thin SOT-23-5 package

Applications

•Mobile phones
•PDAs
•GPS receivers
•Portable electronics
• Digital still and video cameras

Specifications

Attribute	Attribute Value
Manufacturer	Microchip Technology
Product Category	Linear Voltage Regulators
Series	-
Packaging	Tape & Reel (TR)
Mounting-Style	SMD/SMT
Package-Case	6-UFDFN Exposed Pad, 6-TMLFR
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Surface Mount
Supplier-Device-Package	6-TMLFR (1.6x1.6)
Voltage-Input	2.3 V ~ 5.5 V
Current-Output	150mA
Voltage-Output	1.25 V ~ 5.5 V
Regulator-Topology	Positive Adjustable
Voltage-Dropout-Typical	0.04V @ 150mA
Number-of-Regulators	1 Regulator
Current-Limit-Min	275mA
Output-Current	150 mA
Part-#-Aliases	MIC5301YMT TR
Package-Case	MLF-6

Descriptions

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.25 V ~ 5.5 V 150mA 6-TMLF? (1.6x1.6)

LDO Regulator Pos 1.25V to 5.5V 0.15A 6-Pin UDFN EP T/R

LDO Voltage Regulators

China MIC5301YMT-TR IC REG LIN POS ADJ 150MA 6TMLF Microchip Technology factory

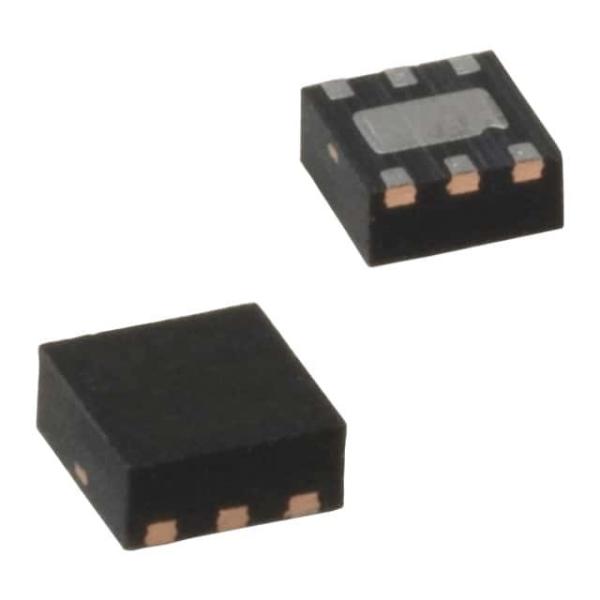

MIC5301YMT-TR IC REG LIN POS ADJ 150MA 6TMLF Microchip Technology Images
