LM7912CT/NOPB IC REG LINEAR -12V 1.5A TO220-3 Texas Instruments

Name: LM7912CTNOPB IC REG LINEAR 12V 15A TO2203 Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : LM7912CT/NOPB

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Negative

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : -35V

Voltage - Output (Min/Fixed) : -12V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 1.1V @ 1A

Current - Output : 1.5A

Current - Quiescent (Iq) : 1.5 mA

Current - Supply (Max) : -

PSRR : 70dB (120Hz)

Control Features : -

Protection Features : Over Temperature, Short Circuit

Operating Temperature : 0°C ~ 125°C

Mounting Type : Through Hole

Package / Case : TO-220-3

Supplier Device Package : TO-220-3

Contact Now

Product Details

Description: The LM7912CT/NOPB is a negative fixed voltage regulator from Texas Instruments. It is designed to provide a regulated output voltage of -12V with a maximum current output of 1.5A.

Features:
• Output voltage of -12V
• Maximum current output of 1.5A
• Power Supply Ripple Rejection (PSRR) of 70 dB
• Operating temperature range of 0°C to 125°C
• Package-Case of TO-220
• Series of LM7912
• Number-of-Outputs of 1 Output
• Number-of-Regulators of 1 Regulator
• Regulator-Topology of Negative Fixed
• Packaging of Tube

Applications:
The LM7912CT/NOPB is suitable for a wide range of applications including power supplies, battery chargers, and other negative voltage regulation applications. It is also suitable for use in automotive, industrial, and consumer electronics.

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
Series	LM7912
Packaging	Tube
Unit-Weight	0.081130 oz
Mounting-Style	Through Hole
Package-Case	TO-220-3
Operating-Temperature	0°C ~ 125°C
Mounting-Type	Through Hole
Output-Type	Fixed
Supplier-Device-Package	TO-220-3
Voltage-Input	-19 V ~ -35 V
Number-of-Outputs	1 Output
Current-Output	1.5A
Voltage-Output	-12V
Regulator-Topology	Negative Fixed
Voltage-Dropout-Typical	1.1V @ 1A
Number-of-Regulators	1 Regulator
Current-Limit-Min	-
Pd-Power-Dissipation	15 W
Maximum Operating Temperature	+ 125 C
Operating temperature range	0 C
Polarity	Negative
Output-Voltage	- 12 V
Input-Voltage-MAX	- 19 V
Output-Current	2.2 A (Typ)
Input-Voltage-MIN	- 14.5 V
Load-Regulation	200 mV
Package-Case	TO-220
Line-Regulation	80 mV
Power Supply Ripple Rejection (PSRR)	70 dB

Descriptions

Linear Voltage Regulator IC Negative Fixed 1 Output -12V 1.5A TO-220-3

Standard Regulator Neg -12V 1.5A 3-Pin(3+Tab) TO-220 Tube

Linear Voltage Regulators 3-Terminal Neg Vltg

China LM7912CT/NOPB IC REG LINEAR -12V 1.5A TO220-3 Texas Instruments factory

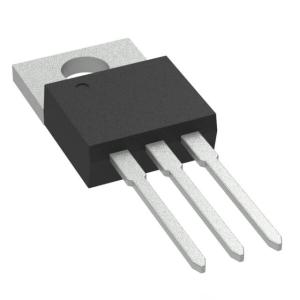

LM7912CT/NOPB IC REG LINEAR -12V 1.5A TO220-3 Texas Instruments Images
