TLE42712GATMA1 IC REG LINEAR 5V 550MA TO263-7-1 Infineon Technologies

Name: TLE42712GATMA1 IC REG LINEAR 5V 550MA TO26371 Infineon Technologies
Brand: Infineon Technologies
Price: 1 USD

Brand Name : Infineon Technologies

Model Number : TLE42712GATMA1

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 40V

Voltage - Output (Min/Fixed) : 5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.7V @ 550mA

Current - Output : 550mA

Current - Quiescent (Iq) : 6 µA

Current - Supply (Max) : 90 mA

PSRR : 54dB (100Hz)

Control Features : Reset, Watchdog

Protection Features : Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit

Operating Temperature : -40°C ~ 150°C (TJ)

Mounting Type : Surface Mount

Package / Case : TO-263-8, D²Pak (7 Leads + Tab), TO-263CA

Supplier Device Package : PG-TO263-7-1

Contact Now

Product Details

Functional Description

This device is a 5-V low-drop fixed-voltage regulator. The maximum input voltage is 42 V (65 V, ≤ 400 ms). Up to an input voltage of 26 V and for an output current up to 550 mA it regulates the output voltage within a 2 % accuracy. The short circuit protection limits the output current of more than 650 mA. The IC can be switched off via the inhibit input. An integrated watchdog monitors the connected controller. The device incorporates overvoltage protection and temperature protection that disables the circuit at unpermissibly high temperatures.

Features

• Output voltage tolerance ≤ ± 2%
• Low-drop voltage
• Integrated overtemperature protection
• Reverse polarity protection
• Input voltage up to 42 V
• Overvoltage protection up to 65 V (≤ 400 ms)
• Short-circuit proof
• Suitable for use in automotive electronics
• Wide temperature range
• Adjustable reset and watchdog time

Specifications

Attribute	Attribute Value
Manufacturer	INFINEON
Product Category	Linear Voltage Regulators
Series	TLE4271
Packaging	Reel
Unit-Weight	0.056438 oz
Mounting-Style	SMD/SMT
Output-Type	Fixed
Number-of-Outputs	1 Output
Maximum Operating Temperature	+ 150 C
Operating temperature range	- 40 C
Output-Voltage	5 V
Input-Voltage-MAX	40 V
Output-Current	550 mA
Load-Regulation	25 mV
Part-#-Aliases	SP000300945 TLE4271-2G TLE42712GXT
Package-Case	TO-263-7
Dropout-Voltage	350 mV
Output-Voltage-Range	-

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 5V 550mA PG-TO263-7

LDO Regulator Pos 5V 0.55A Automotive 8-Pin(7+Tab) D2PAK T/R

LDO Voltage Regulators LDO FIXED 5.0V 600mA

China TLE42712GATMA1 IC REG LINEAR 5V 550MA TO263-7-1 Infineon Technologies factory

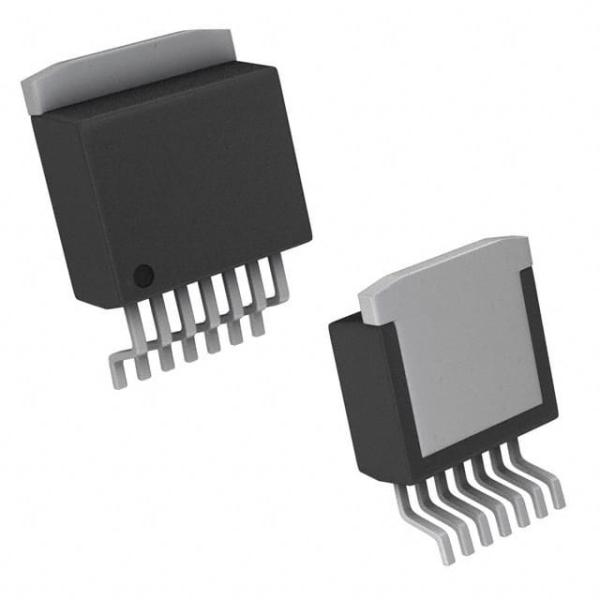

TLE42712GATMA1 IC REG LINEAR 5V 550MA TO263-7-1 Infineon Technologies Images
