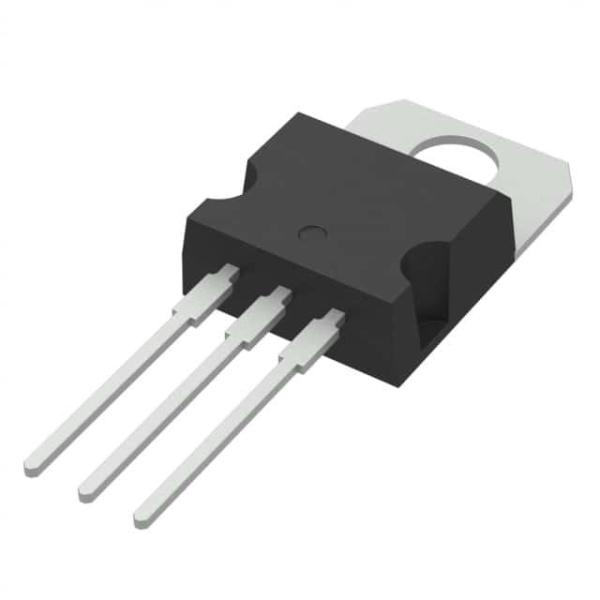

L7805CV IC REG LINEAR 5V 1.5A TO220AB STMicroelectronics

Name: L7805CV IC REG LINEAR 5V 15A TO220AB STMicroelectronics
Brand: STMicroelectronics
Price: 1 USD

Brand Name : STMicroelectronics

Model Number : L7805CV

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 35V

Voltage - Output (Min/Fixed) : 5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 2V @ 1A (Typ)

Current - Output : 1.5A

Current - Quiescent (Iq) : 8 mA

Current - Supply (Max) : -

PSRR : 62dB (120Hz)

Control Features : -

Protection Features : Over Temperature, Short Circuit

Operating Temperature : 0°C ~ 125°C

Mounting Type : Through Hole

Package / Case : TO-220-3

Supplier Device Package : TO-220

Contact Now

L7805CV IC REG LINEAR 5V 1.5A TO220AB STMicroelectronics

Product Details

Description

The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications.
These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Features

● Output current up to 1.5 A
● Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
● Thermal overload protection
● Short circuit protection
● Output transition SOA protection
● 2 % output voltage tolerance (A version)
● Guaranteed in extended temperature range (A version)

Specifications

Attribute	Attribute Value
Manufacturer	STMicroelectronics
Product Category	Linear Voltage Regulators
Manufacturer	STMicroelectronics
Product-Category	Linear Voltage Regulators
RoHS	Details
Mounting-Style	Through Hole
Package-Case	TO-220
Output-Voltage	5 V
Output-Current	1.5 A
Output-Type	Fixed
Input-Voltage-MAX	35 V
Maximum-Operating-Temperature	+ 125 C
Load-Regulation	100 mV
Line-Regulation	100 mV
Series	L7805
Brand	STMicroelectronics
Input-Voltage-MIN	7 V
Minimum-Operating-Temperature	0 C
Number-of-Outputs	1 Output
Packaging	Tube
Polarity	Positive
PSRR-Ripple-Rejection-Typ	62 dB
Unit-Weight	0.081130 oz

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
UPC78M05AHF-AZ Power Circuits	Fixed Positive Standard Regulator, 5VBIPolar, PSFM3, ISOLATED, PLASTIC, TO-220, SIP-3	NEC Electronics America Inc	L7805CV vs UPC78M05AHF-AZ
KA78M05 Power Circuits	Fixed Positive Standard Regulator, 5VBIPolar, TO-220, 3 PIN	Fairchild Semiconductor Corporation	L7805CV vs KA78M05
KA7805 Power Circuits	Fixed Positive Standard Regulator, 5VBIPolar, PSFM3, TO-220, 3 PIN	Fairchild Semiconductor Corporation	L7805CV vs KA7805
MC78M05CDTRK Power Circuits	5V FIXED POSITIVE REGULATOR, PSSO2, PLASTIC, DPAK-3	ON Semiconductor	L7805CV vs MC78M05CDTRK
L78M05CV Power Circuits	Precision 500 mA regulators	STMicroelectronics	L7805CV vs L78M05CV
MC78M05BDTRK Power Circuits	5V FIXED POSITIVE REGULATOR, PSSO2, PLASTIC, DPAK-3	ON Semiconductor	L7805CV vs MC78M05BDTRK
MC78M12CDTRK Power Circuits	12V FIXED POSITIVE REGULATOR, PSSO2, PLASTIC, DPAK-3	ON Semiconductor	L7805CV vs MC78M12CDTRK
L7805CV Power Circuits	Positive voltage regulator ICs	STMicroelectronics	L7805CV vs L7805CV
AN78M05 Power Circuits	Fixed Positive Standard Regulator, 5VBIPolar, PSFM3, TO-220AB, 3 PIN	Panasonic Electronic Components	L7805CV vs AN78M05
MC7805CT Power Circuits	Fixed Positive Standard Regulator, 5VBIPolar, PSFM3, TO-220, 3 PIN	Fairchild Semiconductor Corporation	L7805CV vs MC7805CT

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 5V 1.5A TO-220AB

Standard Regulator Pos 5V 1.5A 3-Pin(3+Tab) TO-220 Tube

Linear Voltage Regulators 5.0V 1.0A Positive
